CX2451-01B
RPC Syringe Heater/Cooler (SHC) Gen 2

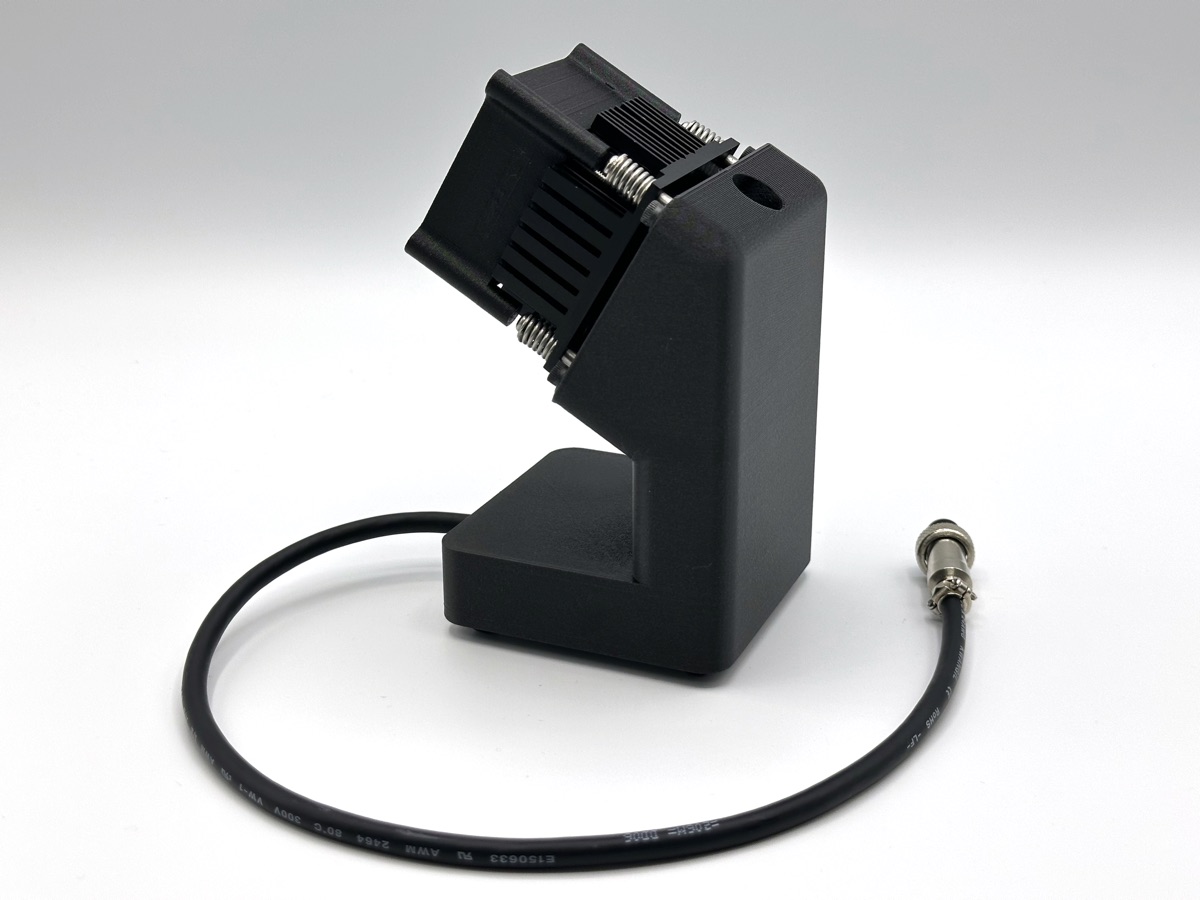

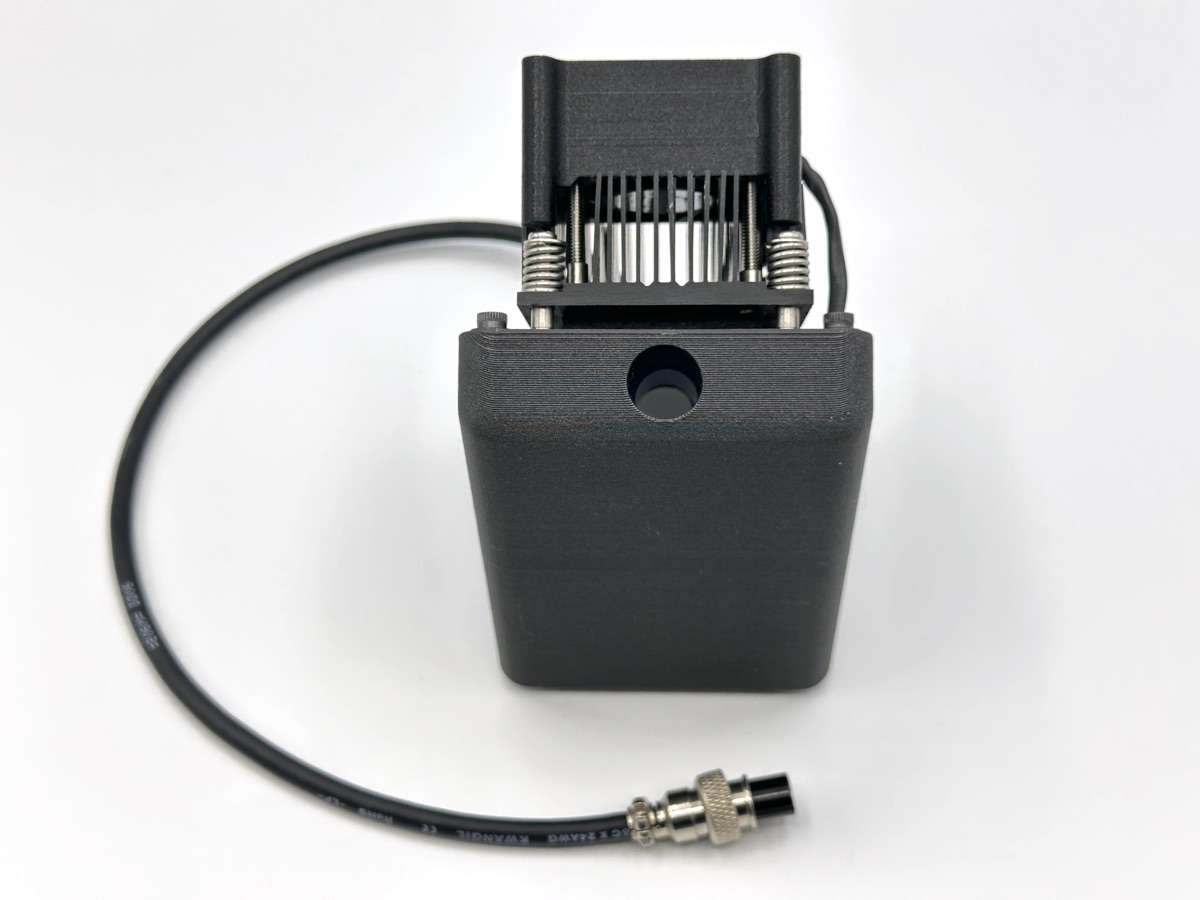

The RPC Syringe Heater/Cooler is the thermal processing unit of the RPC system. It accepts a 3 mL syringe into a precision thermal chamber and applies controlled heating and cooling via an integrated thermoelectric (Peltier) module. An integrated fan and heatsink manage thermal dissipation. The unit connects to the RPC controller via a dedicated cable and is designed for benchtop use with a weighted base for stability.
Compatibility: Requires CX2450-01A Controller Gen 2. Fan cover (CX2461-01A) available as replacement accessory.
Contact us for pricing and availability
Request a QuoteSpecifications
- Syringe Capacity
- 3 mL
- Temperature Range
- -5 to +80°C
- Thermal Method
- Thermoelectric (Peltier) bidirectional
- Cooling
- Active fan with heatsink
- Base
- Weighted for stability
- Connection
- Dedicated cable to RPC controller
- Dimensions
- 3.0 x 3.0 x 5.2 in (75 x 75 x 133 mm)
