CX2398-01A
RPC System Kit Gen 2

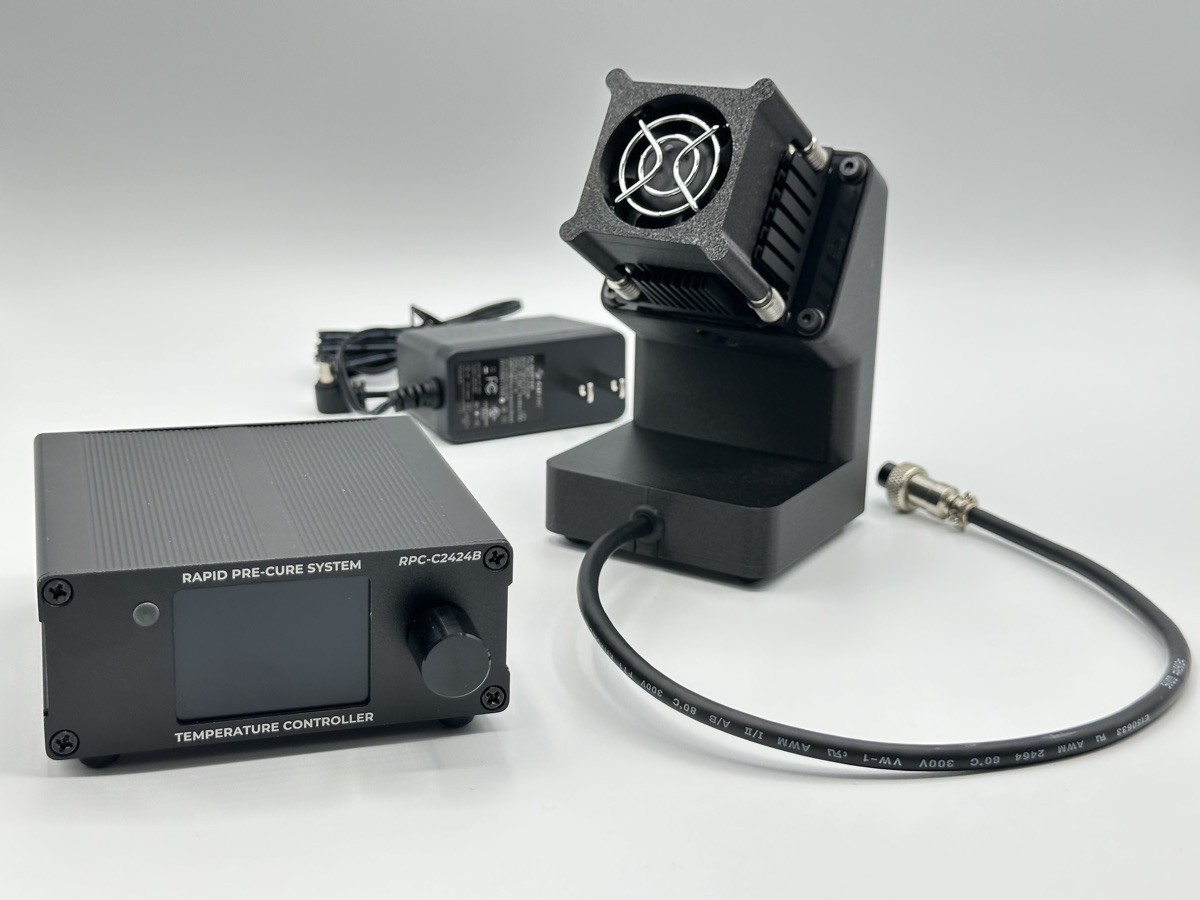

The complete RPC system in a single kit. Includes the temperature controller and syringe heater/cooler (SHC) unit, plus a universal AC/DC power adapter. The RPC system delivers programmable multi-phase thermal cycling using thermoelectric (Peltier) technology, capable of both heating and cooling. Operators select from stored recipes and the system executes the full temperature profile automatically.
Contact us for pricing and availability
Request a QuoteKit Contents
| Qty | Part Number | Component |
|---|---|---|

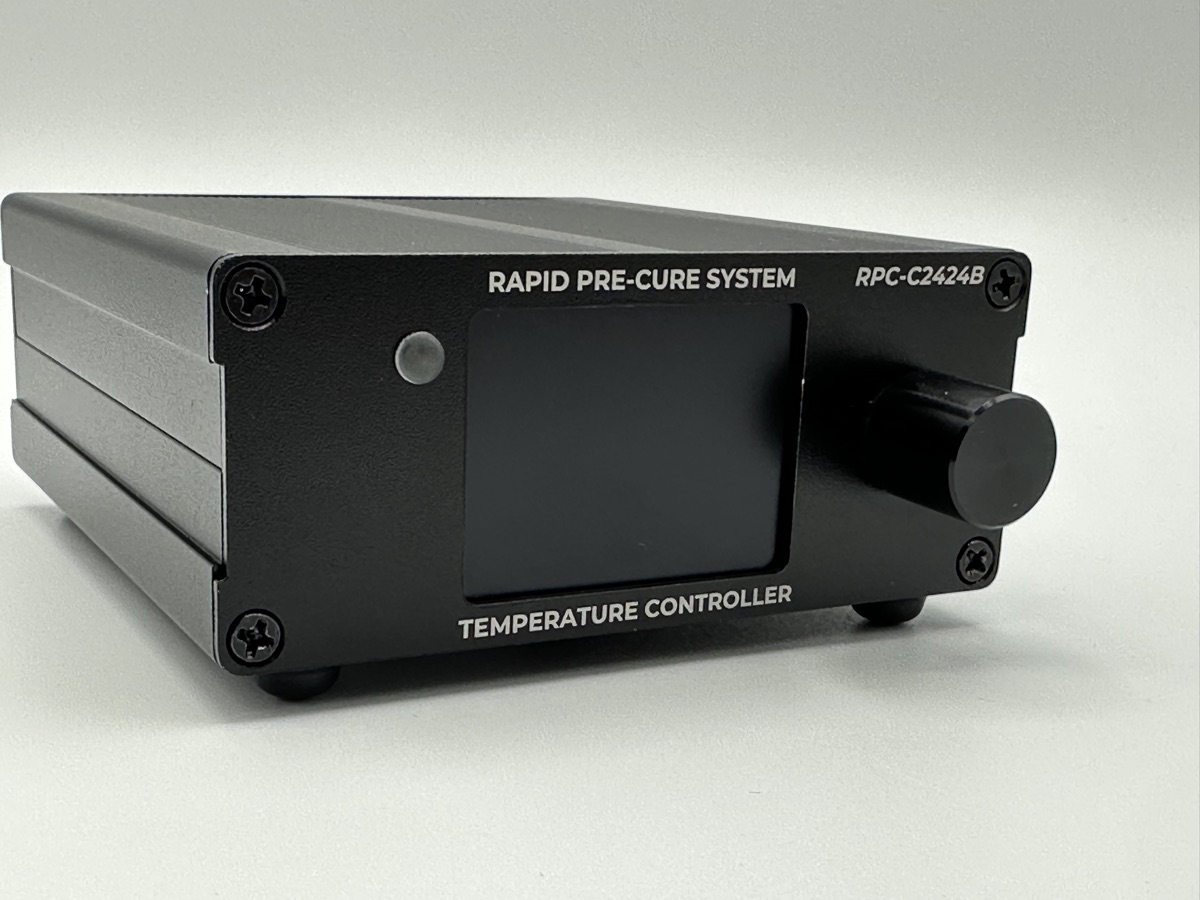

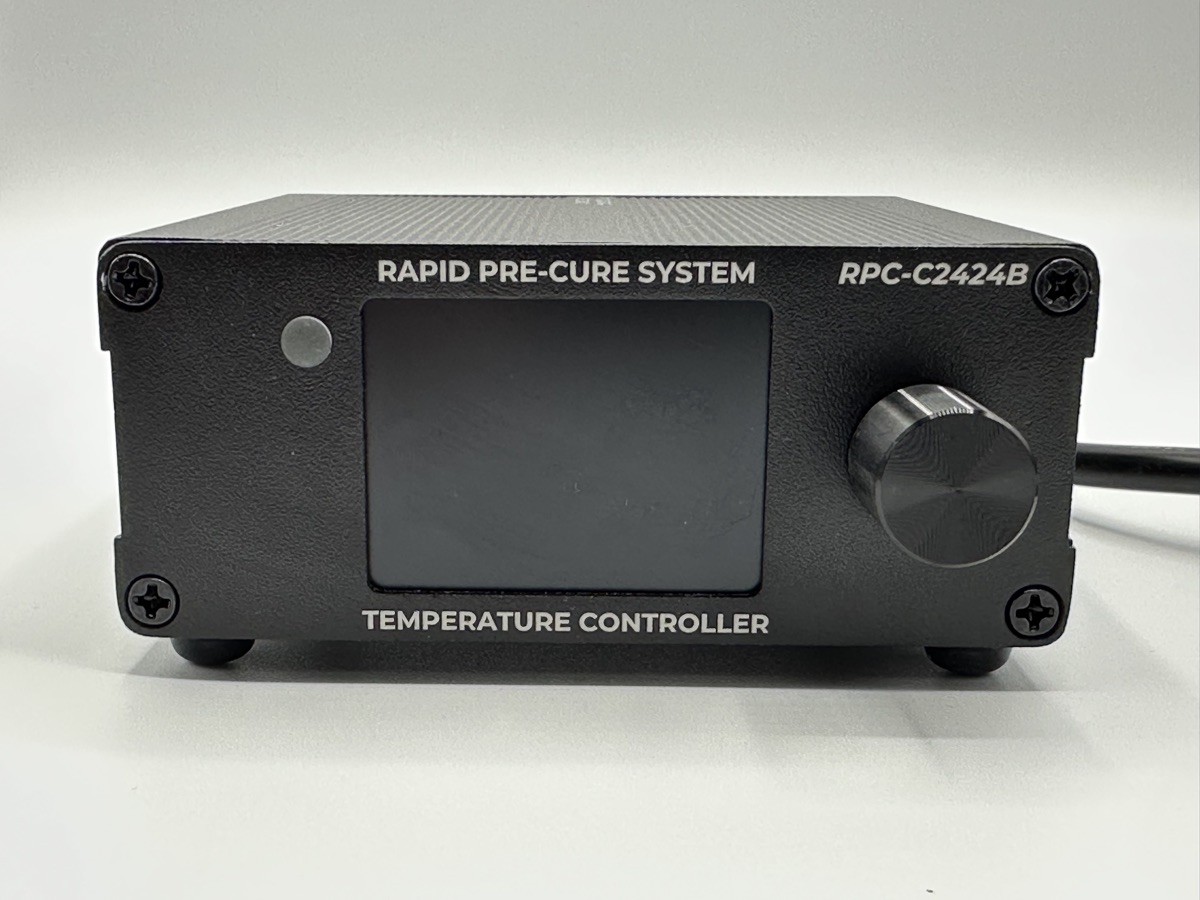

| 1 | CX2450-01A | RPC Temperature Controller Gen 2 |

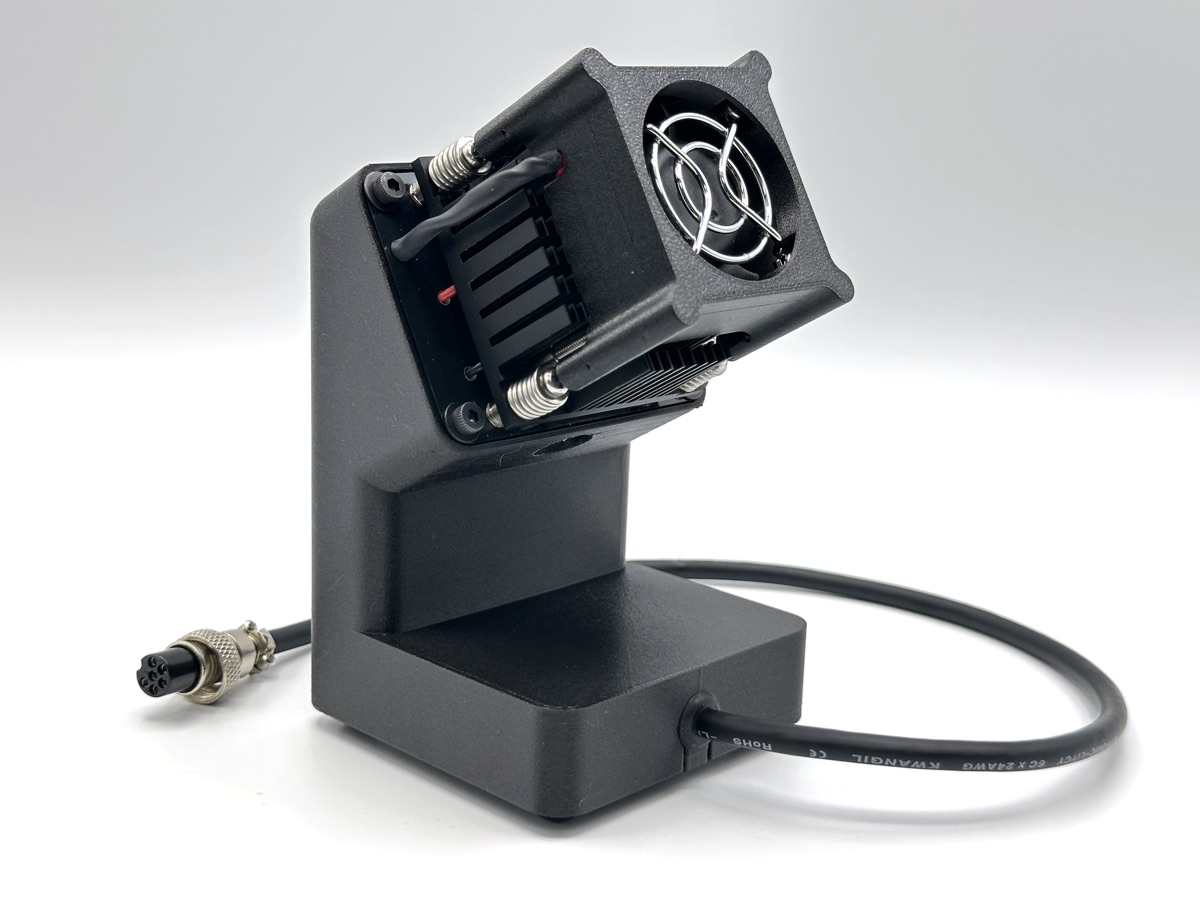

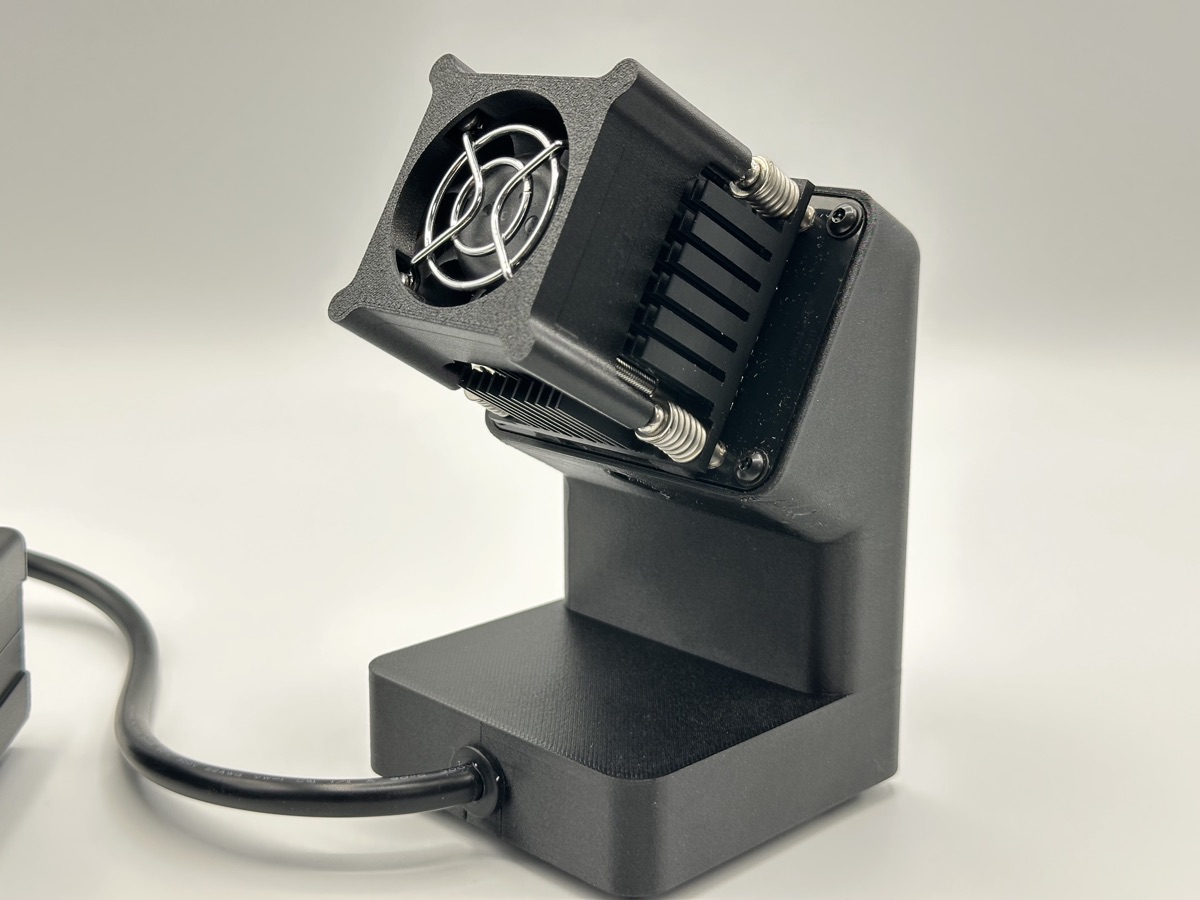

| 1 | CX2451-01B | RPC Syringe Heater/Cooler (SHC) Gen 2 |

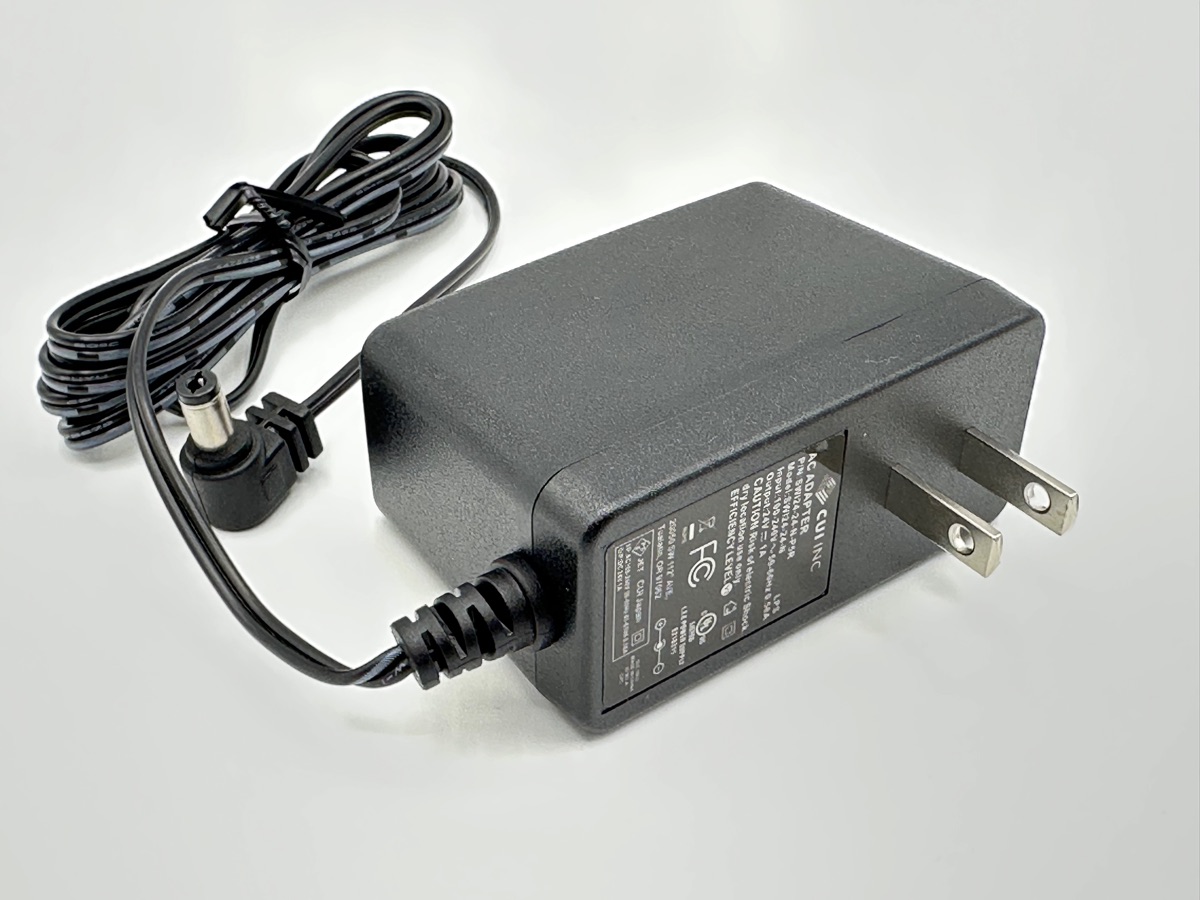

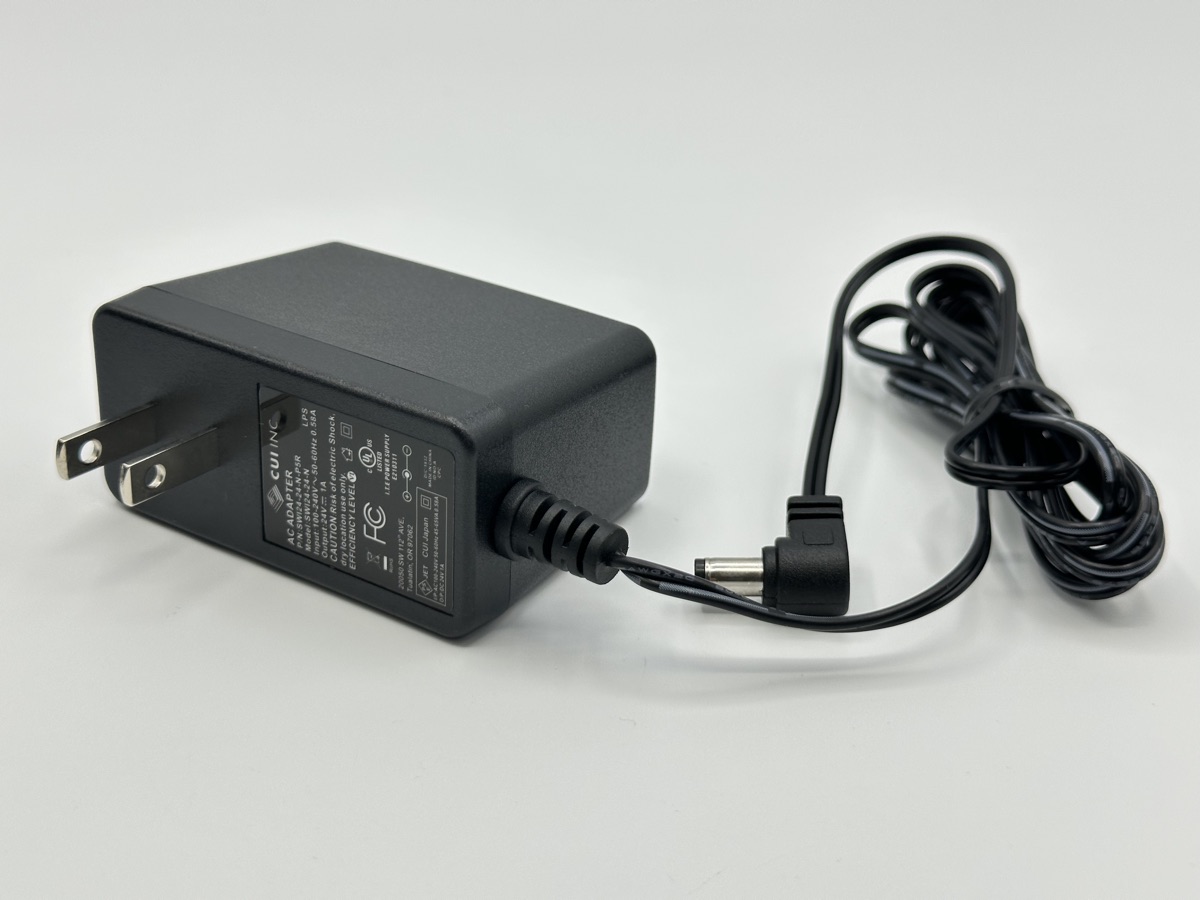

| 1 | CX2224-01A | 24V AC/DC Power Adapter |
Specifications
- Temperature Range
- -5 to +80°C
- Control Accuracy
- ±2.5°C
- Thermal Method
- Thermoelectric (Peltier) heating and cooling
- Recipe Capacity
- 4 stored recipes, 4 phases per recipe
- Phase Duration
- 0–3600 seconds per phase
- Input Power
- 100–240 VAC 50/60 Hz
- Adapter Output
- 24V DC 1A
- Connectivity
- USB Device (Type-C), USB Host (Type-A)
