RPC System

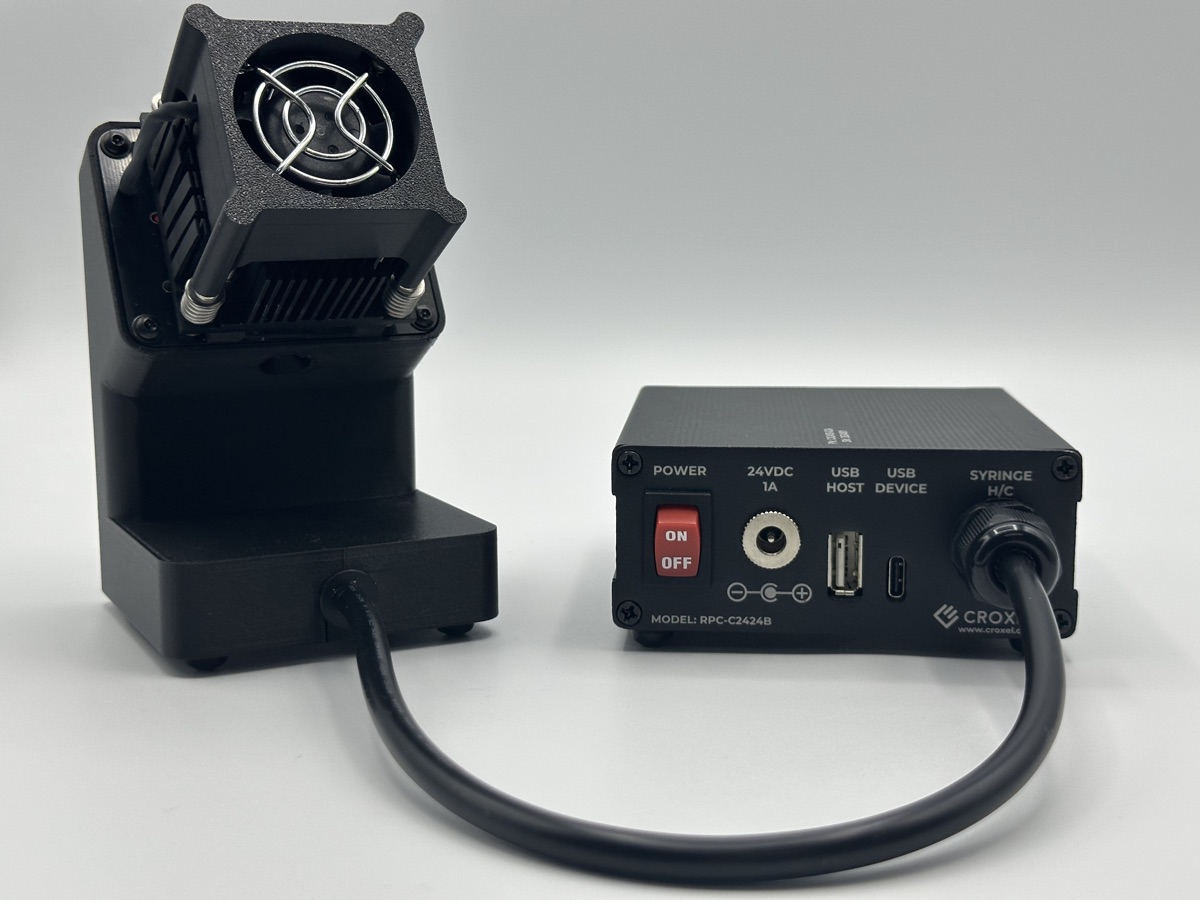

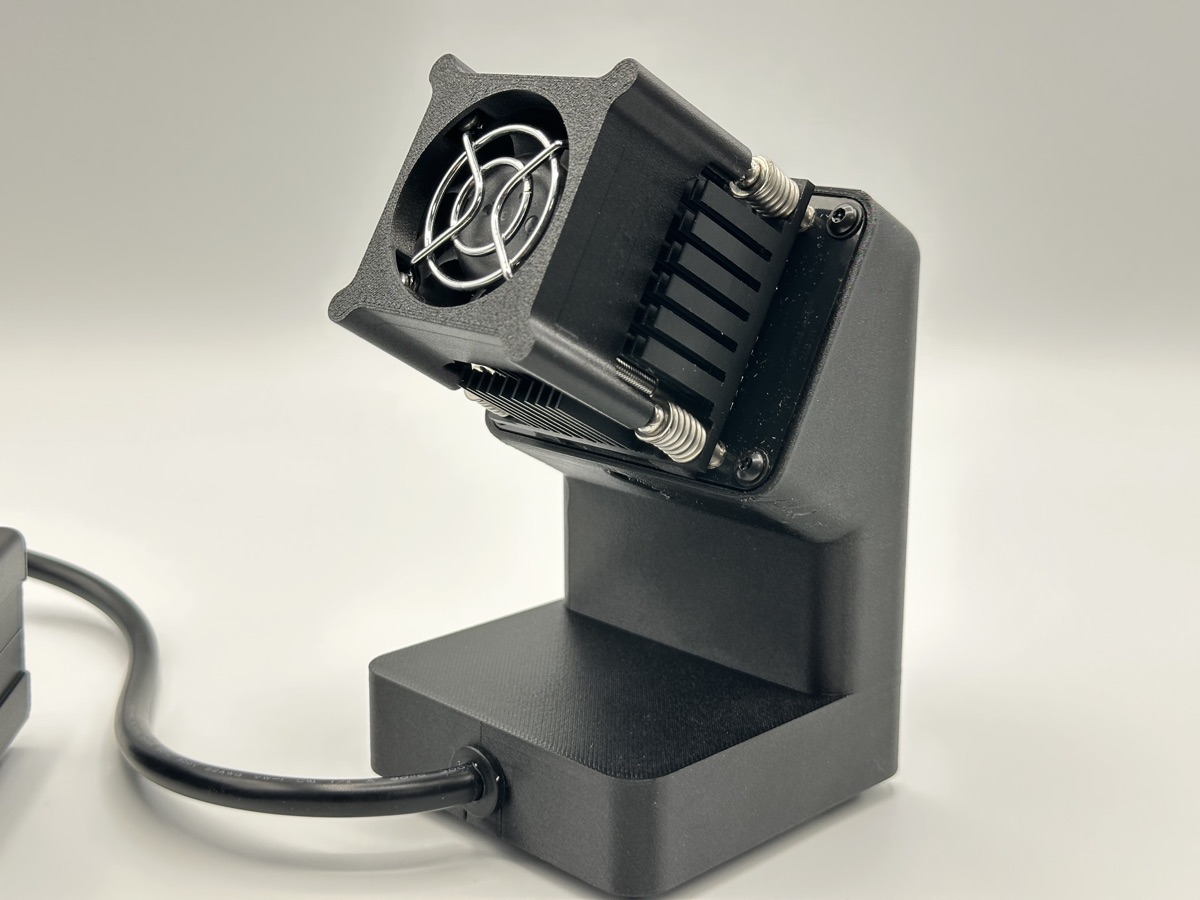

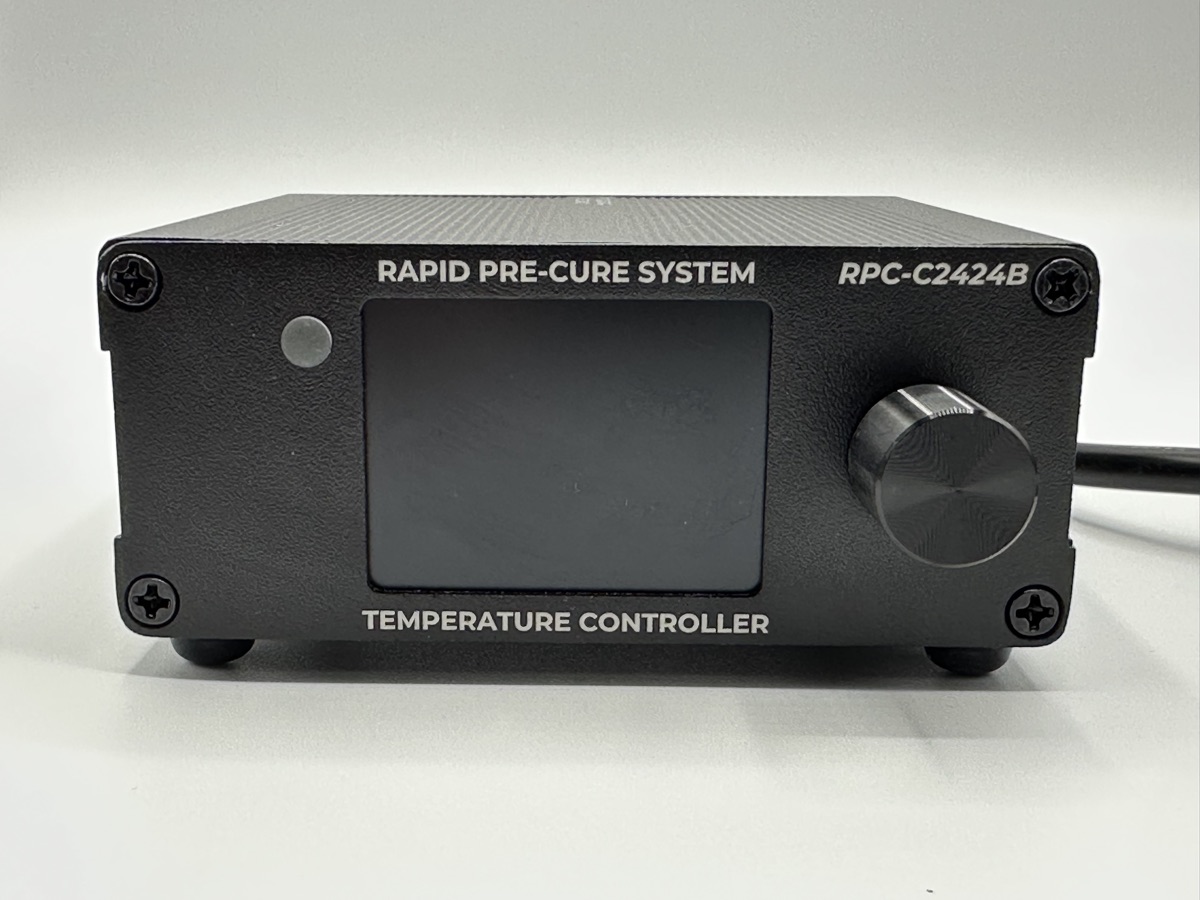

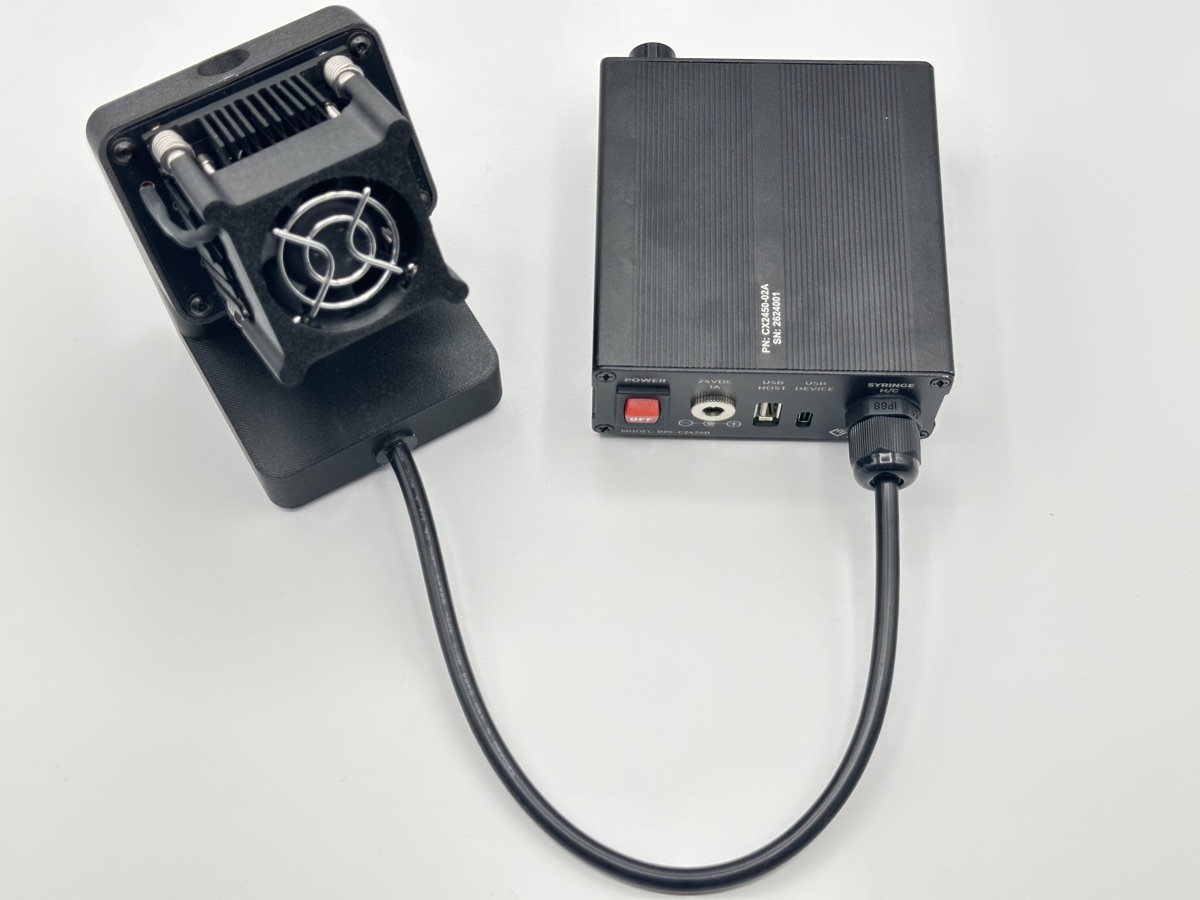

The RPC System is the integrated thermal processing unit of the RPC product family: the temperature controller and syringe heater/cooler (SHC) delivered as one benchtop system, connected by a permanently attached, strain-relieved cable. It accepts a 3 mL syringe into a precision thermal chamber and applies controlled heating and cooling via thermoelectric (Peltier) technology, executing programmed multi-phase temperature recipes automatically with precision closed-loop control. Syringe-presence detection confirms a syringe is loaded before a cycle runs. Features an LCD display showing current temperature, recipe phase, and remaining time. User interface via rotary encoder for recipe control and cycle execution. USB connectivity for PC-based control and automation integration.

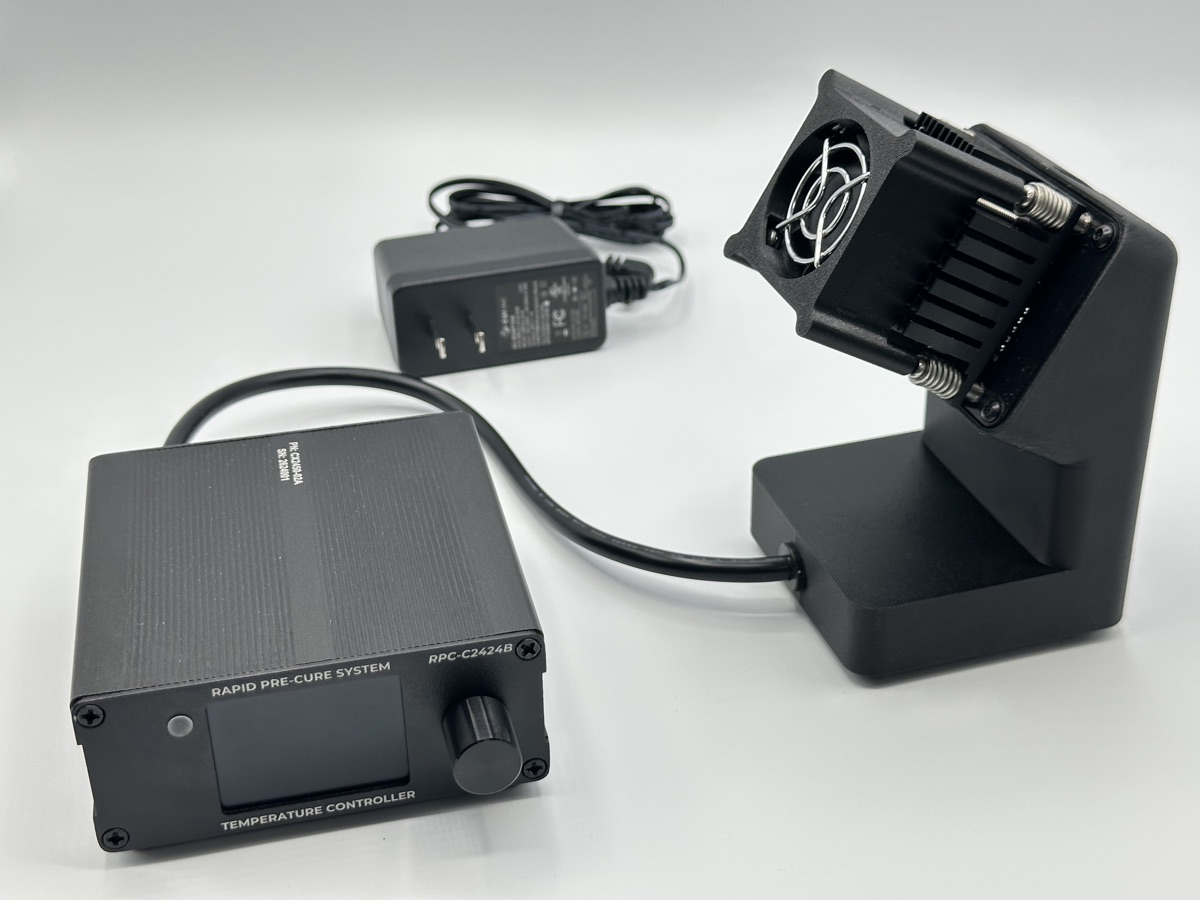

Compatibility: Powered by the CX2224-01 24V AC/DC adapter, included in the CX2398-02 system kit. Fan guard (CX2461-01) available as a replacement accessory.
Contact us for pricing and availability
Request a QuoteSpecifications
- Temperature Range
- -10 to +80°C
- Control Accuracy
- ±1°C
- Thermal Method
- Thermoelectric (Peltier) heating and cooling

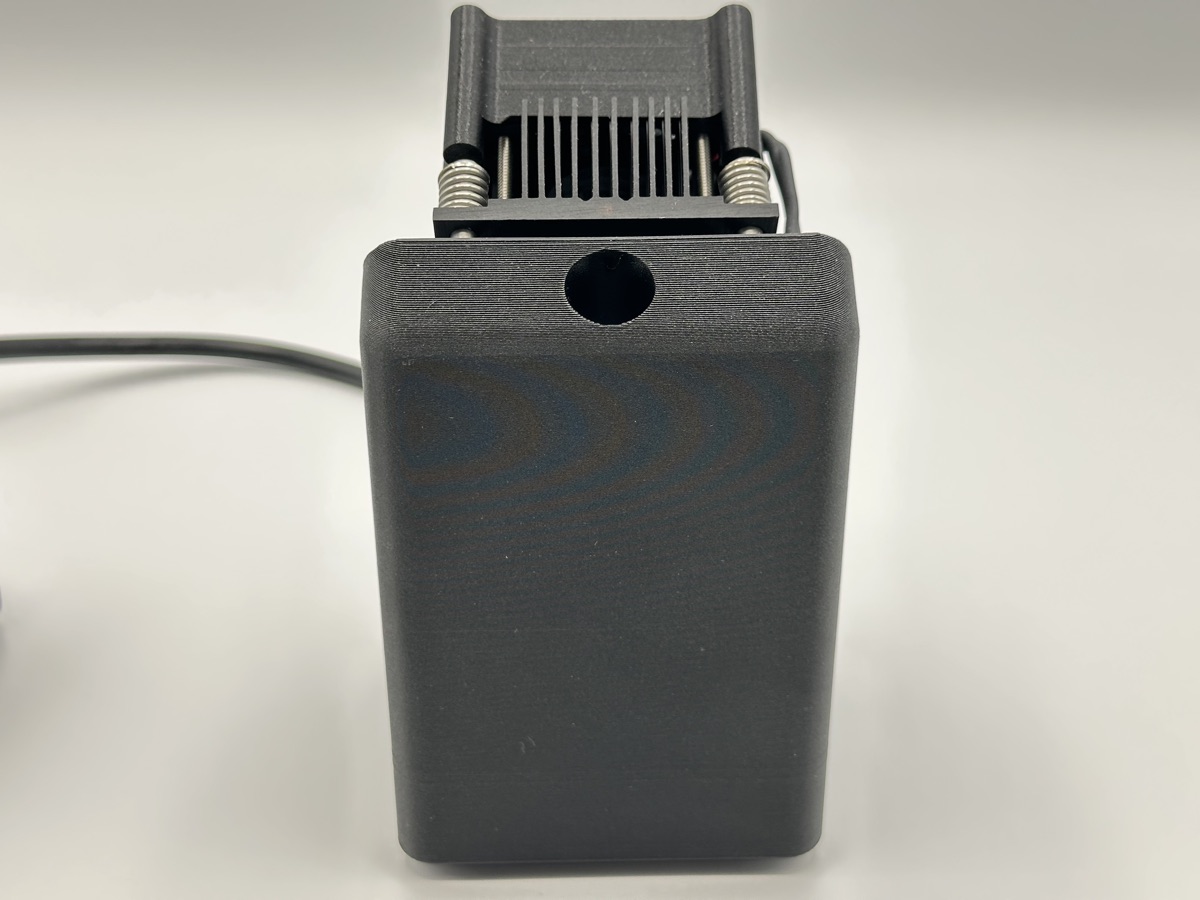

- Cooling
- Active fan with heatsink
- SHC Connection
- Integrated, captive cable
- Syringe Capacity
- 3 mL
- Recipe Capacity
- 1 recipe, 4 phases
- Phase Duration
- 0–3600 seconds per phase
- Display
- 2" LCD
- User Interface
- Rotary encoder with push button
- Status Indicators
- RGB LED
- Input Power
- 24V DC

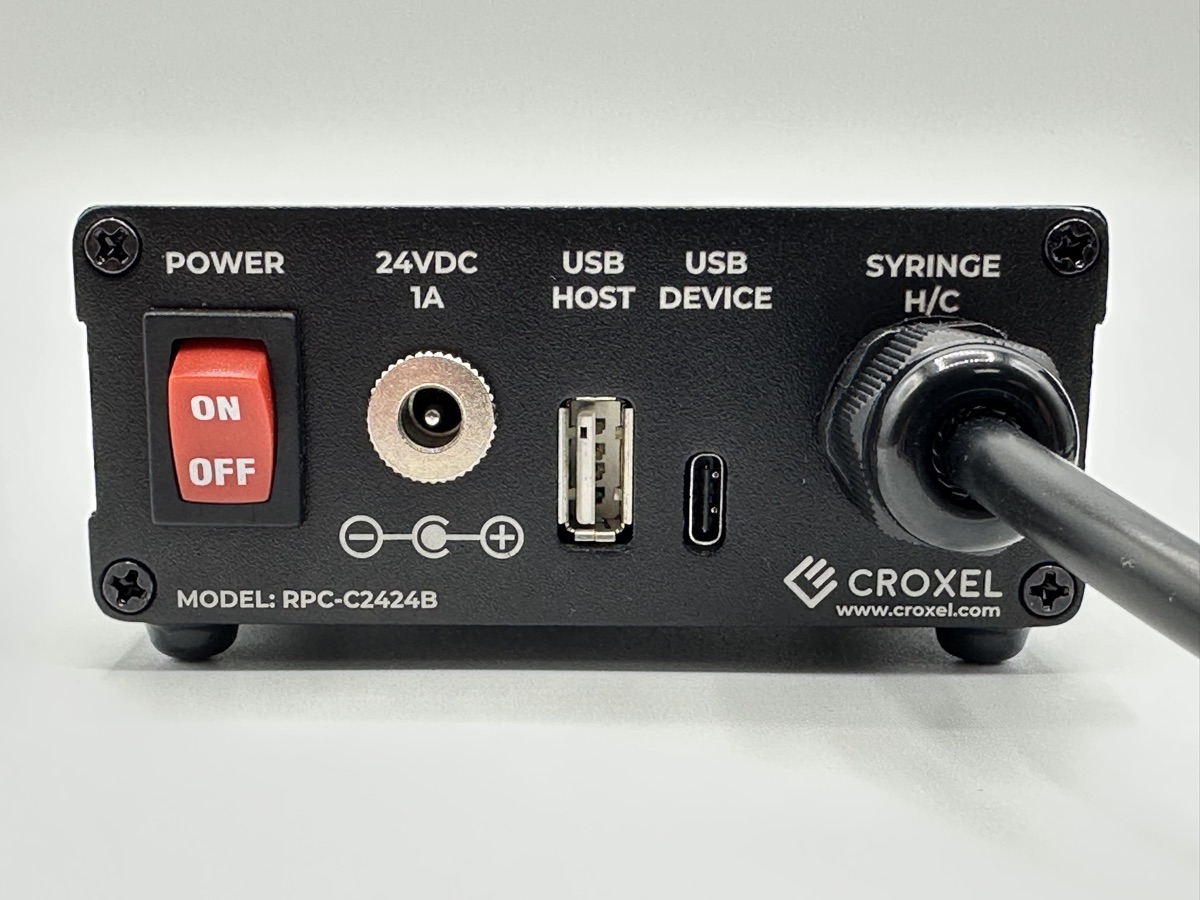

- Connectivity
- USB Device (Type-C), USB Host (Type-A)
- Controller Dimensions
- 3.7 x 4.9 x 1.8 in (95 x 125 x 45 mm)
