CX2450-01A
RPC Temperature Controller Gen 2

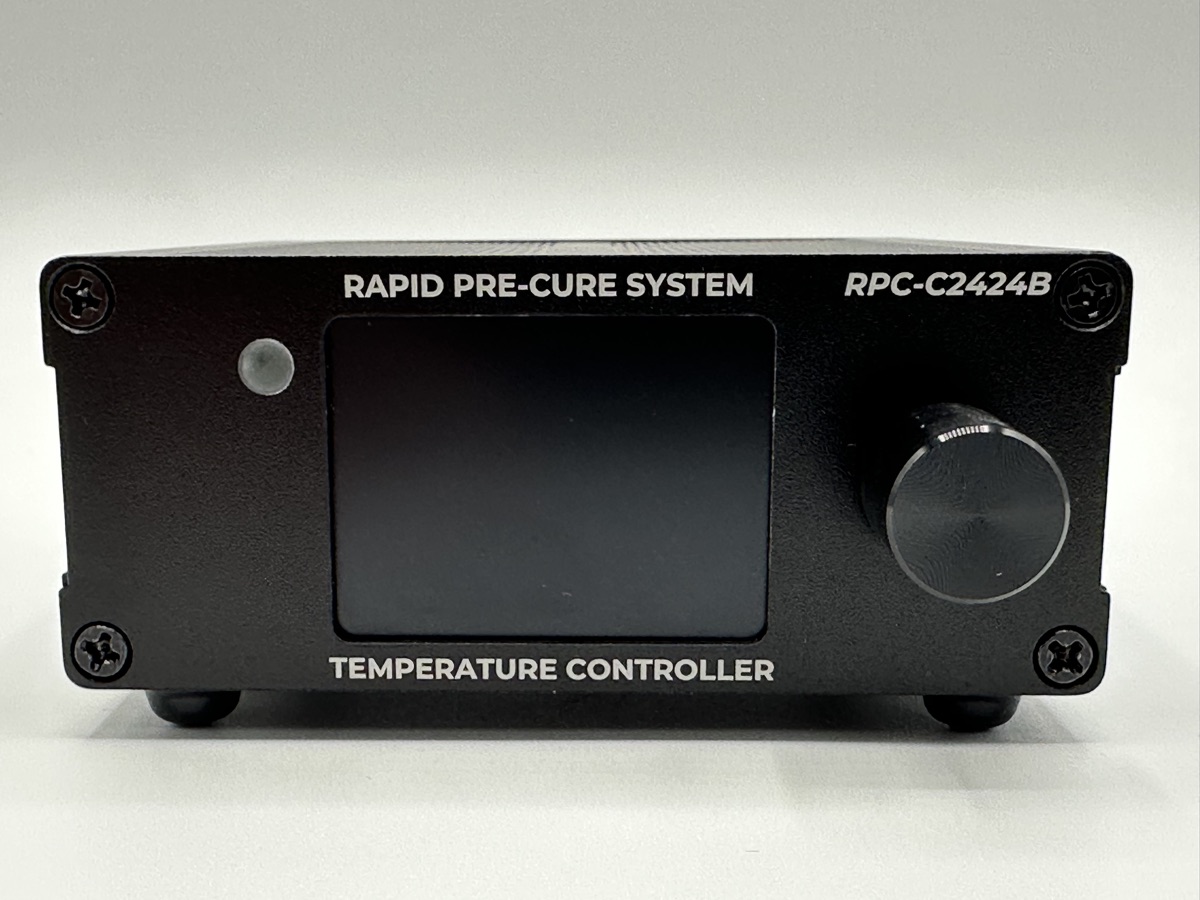

The RPC temperature controller is the central unit of the RPC system. It manages the thermoelectric heating and cooling cycle in the connected syringe heater/cooler (SHC) unit, executing programmed temperature recipes with precision closed-loop control. Features an LCD display showing current temperature, recipe phase, and remaining time. User interface via rotary encoder for recipe selection and cycle control. USB connectivity for PC-based control and automation integration.
Compatibility: Designed for use with CX2451-01B Syringe Heater/Cooler (SHC) Gen 2.
Contact us for pricing and availability
Request a QuoteSpecifications
- Temperature Range
- -5 to +80°C
- Control Accuracy
- ±2.5°C
- Recipe Capacity
- 4 recipes, 4 phases each
- Display
- 2" LCD
- User Interface
- Rotary encoder with push button
- Status Indicators
- RGB LED (green=ready, blue=cycle running, red=error)

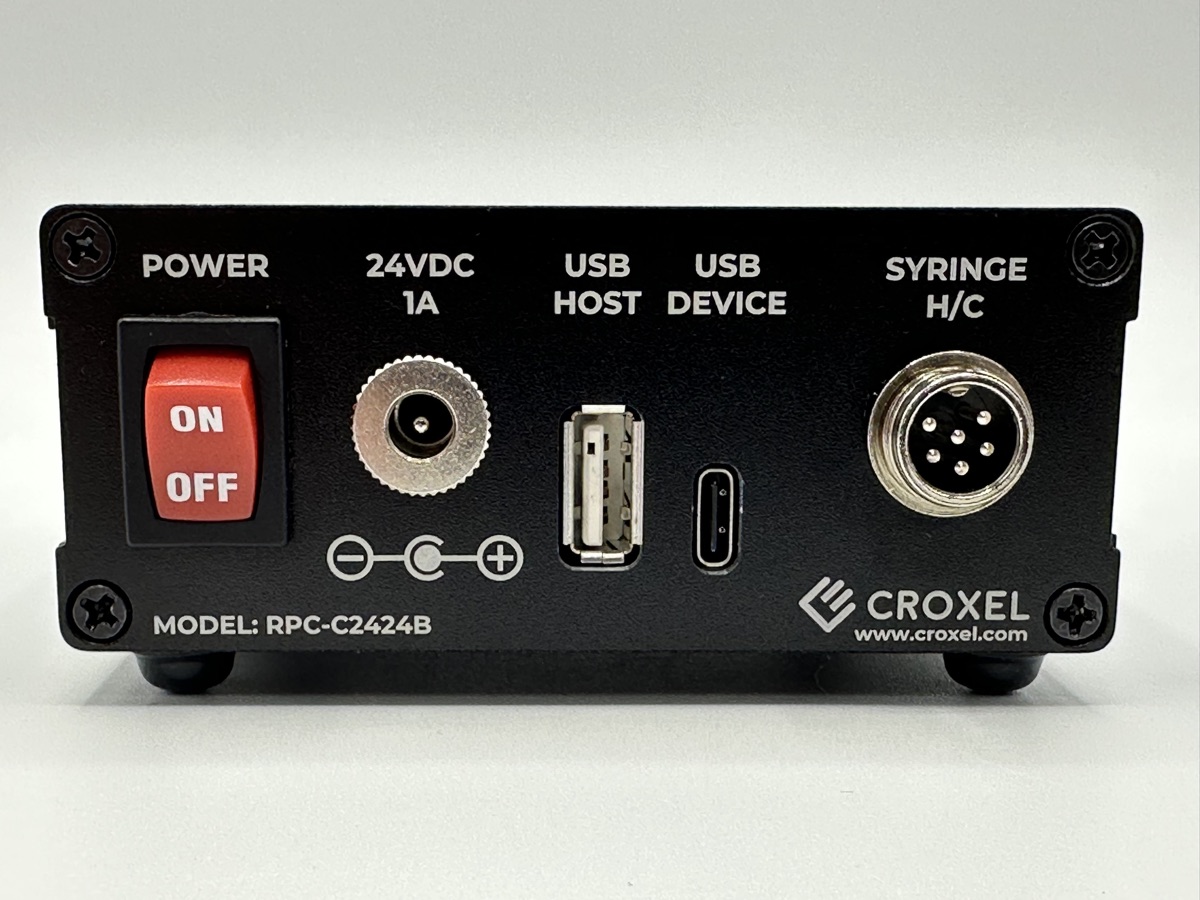

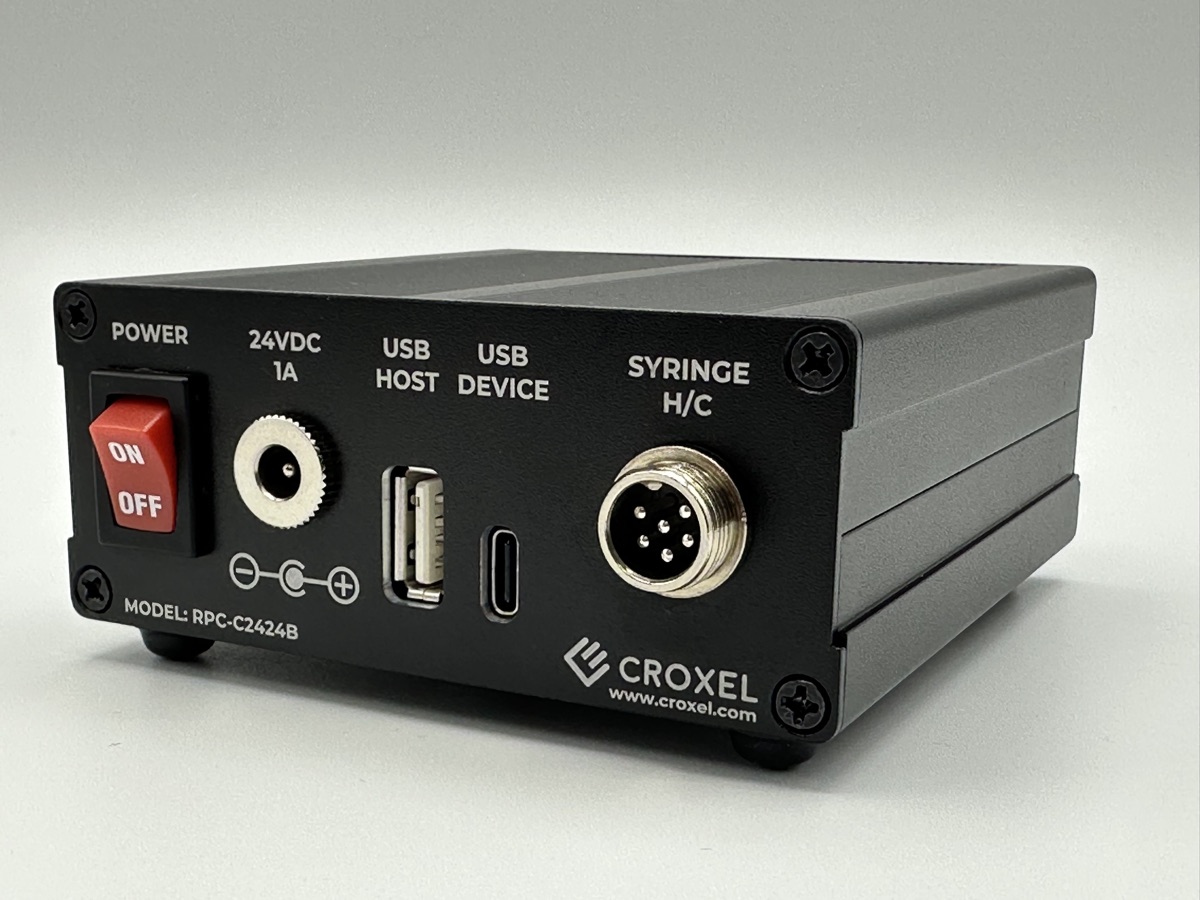

- Input Power
- 24V DC
- Connectivity
- USB Device (Type-C), USB Host (Type-A)
- Dimensions
- 3.7 x 4.9 x 1.8 in (95 x 125 x 45 mm)
