CX2402-01A
HTS Handpiece Gen 2

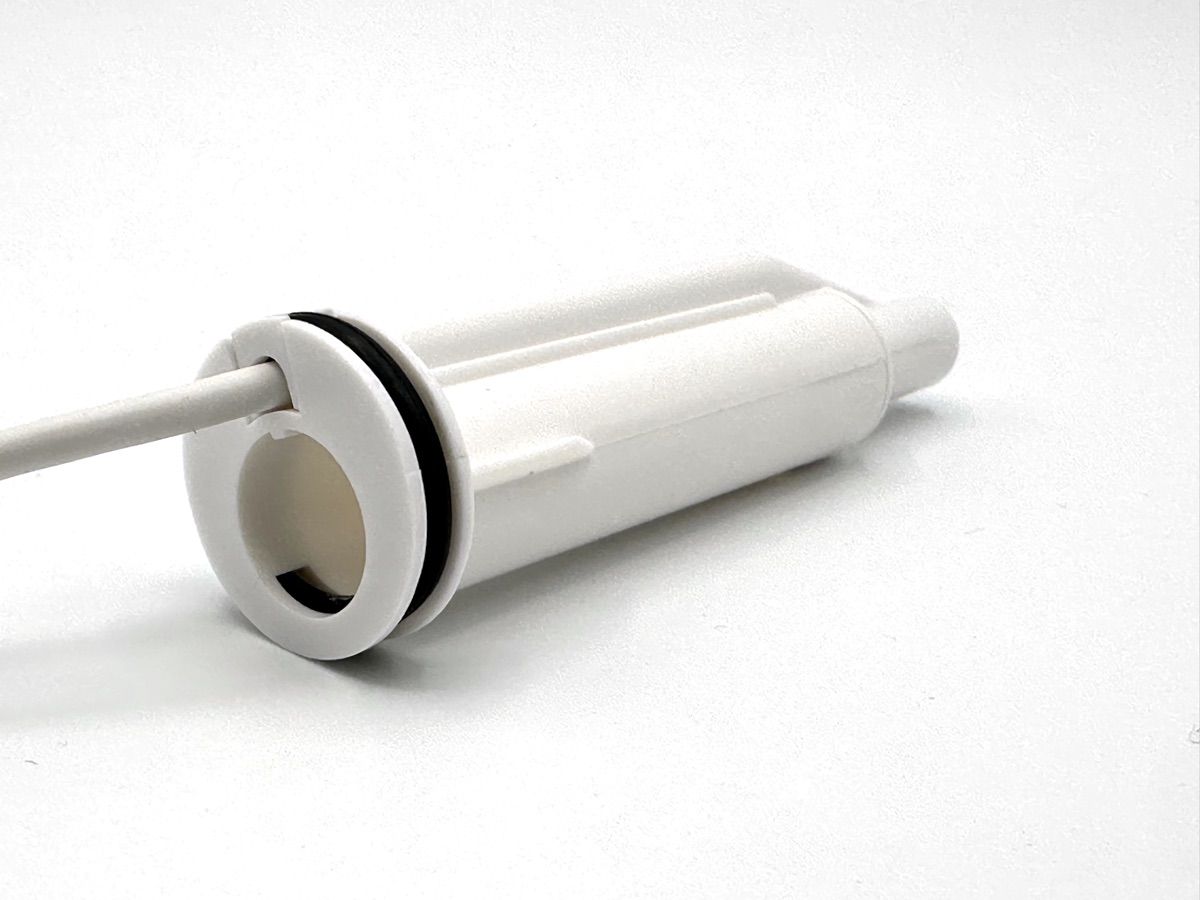

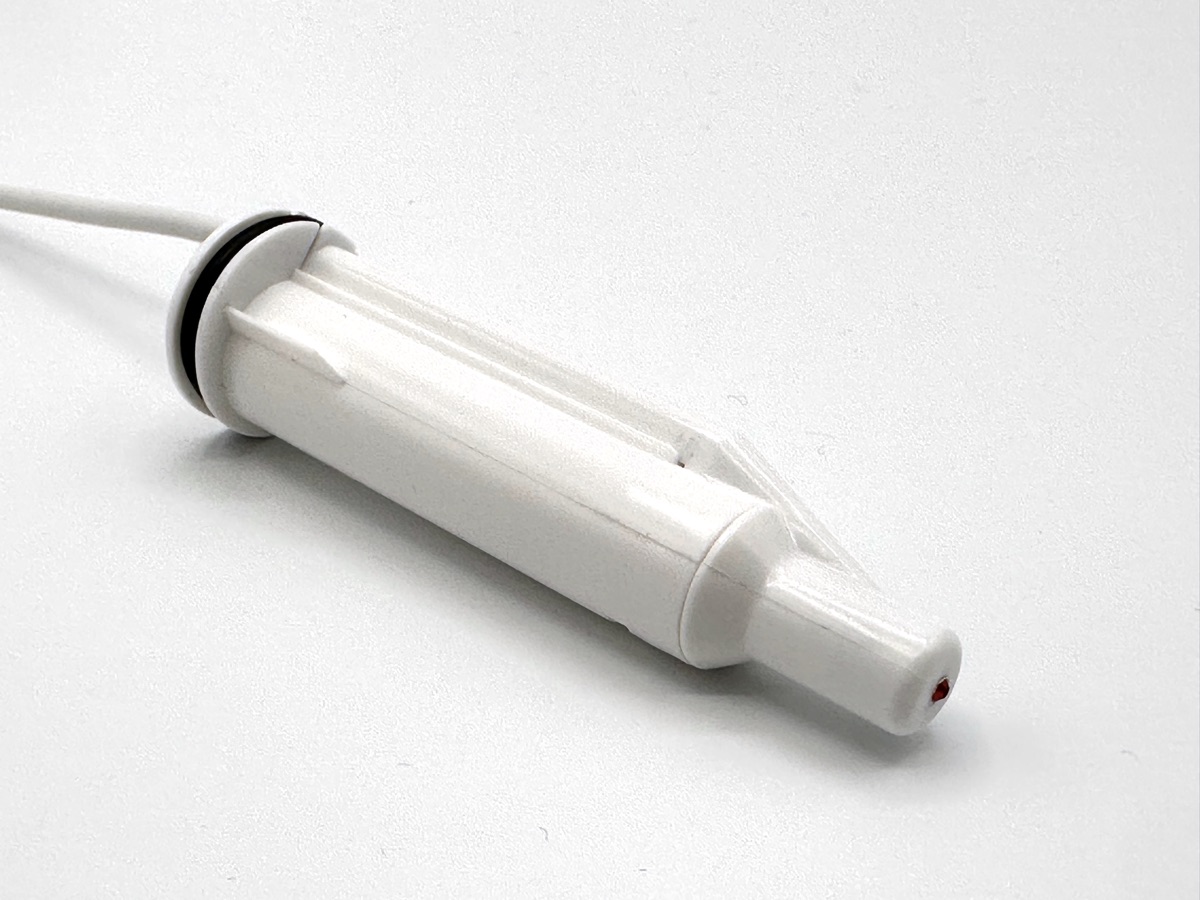

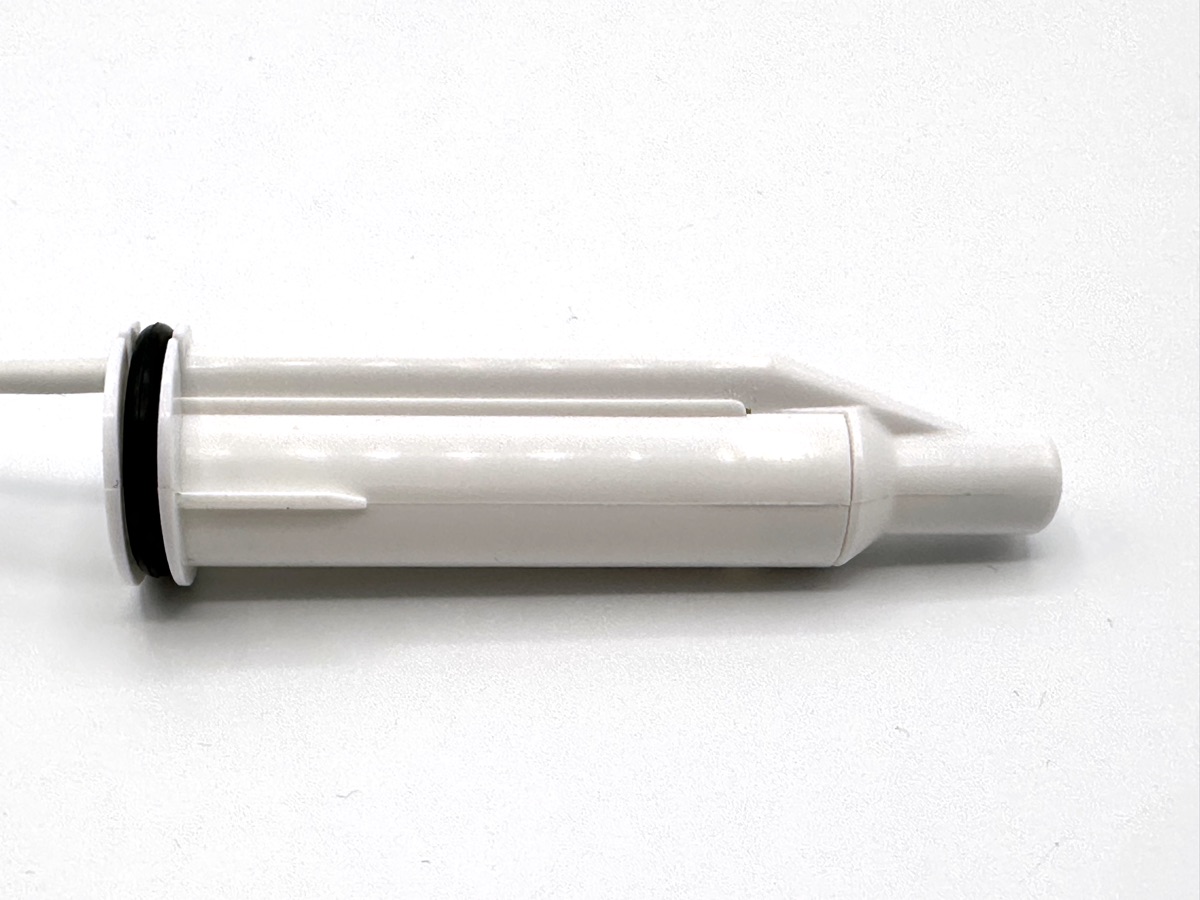

The HTS handpiece is the operator-held unit that delivers precision localized heating at the tip. It houses an integrated ceramic heating element and temperature sensor, connected to the controller via a flexible cable. The Gen 2 handpiece features improved ergonomics, a refined housing design, and compatibility with all HNI (heater-needle interface) accessories. Uses a replaceable O-ring (CX2457-01A) for tool retention.
Compatibility: Requires CX2400-01A Controller Gen 2. Compatible with CX2401-01A Smart Holder Gen 2. Also compatible with HTS Gen 1 controllers when paired with the CX2401-01A Smart Holder Gen 2.
Consumables: Uses CX2213 series HNIs (sold separately or included in system kit).
Contact us for pricing and availability
Request a QuoteSpecifications
- Heating Zone
- Localized tip heating, approx. 0.24 in (6 mm)
- Heat-Up Time
- <5 seconds
- Tool Interface
- Accepts HNI accessories (CX2213 series)
- Retention
- O-ring based (replaceable, CX2457-01A)
- Cable Length
- Approx. 3 ft (1 m)
- Housing Material
- Engineered polymer
